產品展示
PRODUCT

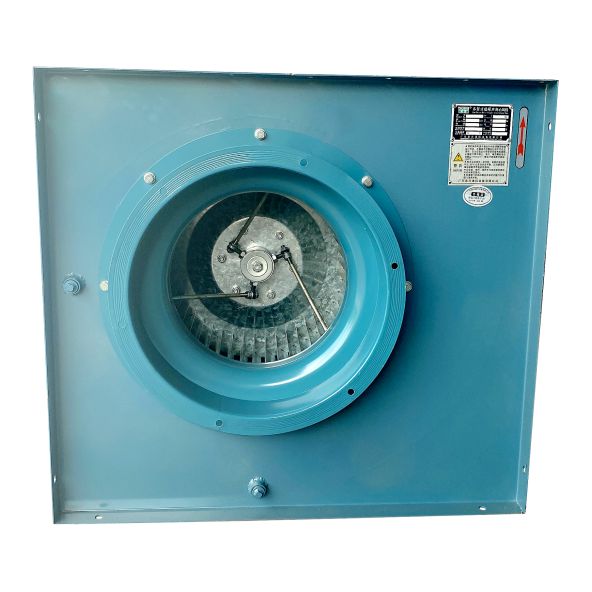

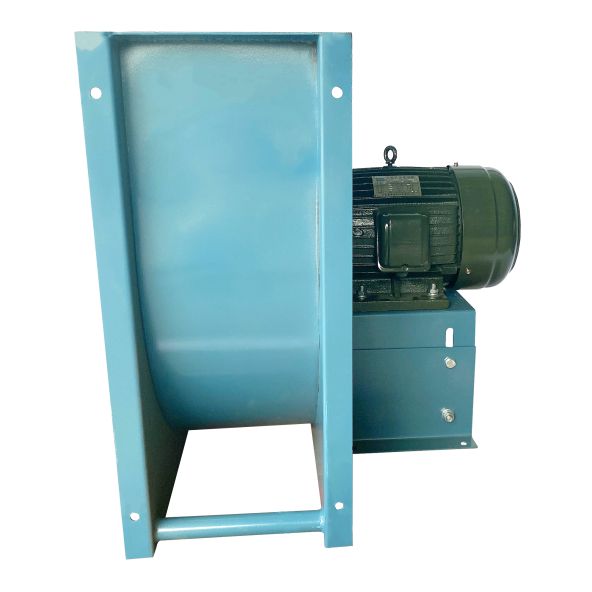

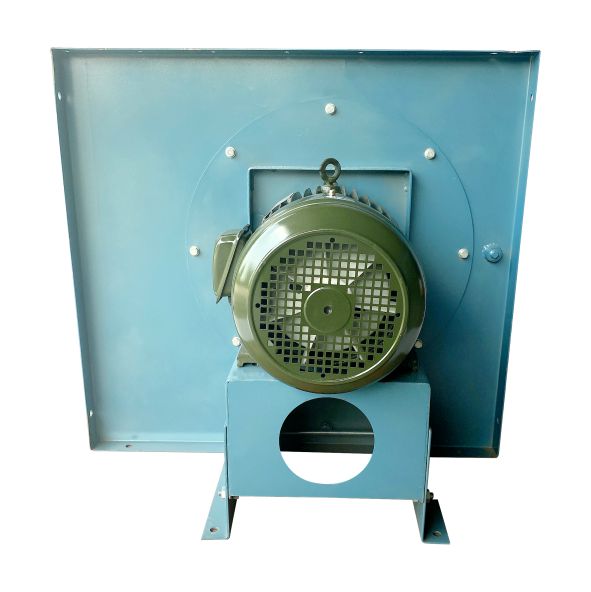

前彎多翼風輪、單進風
用途：廚房抽油煙之理想首選風機，有“油煙王”之稱
90°、180°、0°三種安裝角度可調
型號：2.8A、3.15A、3.55A、4A、4.5A、5A、5.6A、6.3A
Forward curved multi-blade impeller ,single inlet
Application :lt is first choice fan for lampblack exhausting in the
kitchen of the hotel
Model no.:2.4A、3.15A、3.55A、4A、4.5A、5A、5.6A、6.3A
Three adjustable air outlet angles :90°、180°、0°
產品詳情
|
型號
Model |
電壓
Voltage |
功率
Power |
轉速
Revolution |
風量
Air Volume |
風壓 Wind pressure （Pa） |
規(guī)格
Specifications |
總重量
Total weight |
葉輪重量 Wind wheel Weight (Kg) |
入風口尺寸Air inlet size |
出風口尺寸 Air outlet size |
風輪價 Wind turbine price （RMB） |
整機單價 Unit price of complete machine （RMB） |
|
2.8A |
220 |
1.5 |
1450 |
2400-4500 |
644-858 |
520X520X565 |
32 |
3 |
Φ290 |
310X180 |
260 |
1790 |
|
380 |
1.5 |
1450 |
2200-3500 |
562-668 |
1580 |
|||||||
|
3.15A |
380 |
0.75 |
910 |
1506-2824 |
254-338 |
575x580x635 |
35 |
4 |
Φ305 |
200x350 |
310 |
1720 |
|
220 |
2.2 |
1450 |
2200-3500 |
256-668 |
2320 |
|||||||
|
380 |
2.2 |
1450 |
2400-4500 |
644-858 |
640x625x585 |
35 |
4 |
Φ305 |
200x350 |
2060 |
||
|
380 |
3 |
1450 |
3000-5500 |
1000-6000 |
2200 |
|||||||
|
3.55A |
380 |
1.1 |
960 |
2118-5164 |
390-492 |
625x655x710 |
42 |
5.5 |
Φ350 |
225x400 |
400 |
1996 |
|
380 |
4 |
1450 |
3200-7800 |
890-1123 |
2600 |
|||||||
|
4A |
380 |
3 |
960 |
3000-5800 |
609-664 |
715x730x800 |
54 |
7.3 |
Φ400 |
250x450 |
460 |
3480 |
|
380 |
5.5 |
1450 |
6000-8800 |
1307-1420 |
3660 |
|||||||
|
4.5A |
380 |
4 |
960 |
4222-10486 |
875-757 |
785x800x900 |
76.5 |
8.1 |
Φ450 |
500x280 |
530 |
4120 |
|
5A |
380 |
5.5 |
960 |
5000-13000 |
740-933 |
815x890x1000 |
98 |
13 |
Φ500 |
560x315 |
620 |
4760 |
|
5.6A |
380 |
4 |
720 |
2696-12619 |
568-700 |
915x990x1110 |
126 |
19 |
Φ560 |
360x630 |
740 |
5900 |
|
380 |
7.5 |
970 |
4000-17000 |
1031-1270 |
6400 |
|||||||
|
6.3A |
380 |
11 |
960 |
7327-23051 |
1376-1564 |
1005x1120x1250 |
153 |
21 |
Φ610 |
400x710 |
1220 |
7800 |
|
380 |
15 |
970 |
14819-25500 |
1475-1637 |
8600 |
|||||||
|
380 |
7.5 |
720 |
9768-17802 |
890-665 |
8000 |
